HT160_170_180

For cutting narrow sprues - Blade 10 mm

Model	HT-160
Length	150 mm
Weight	240 grams
Blade Temp. Max	140^deg C
Cutting Capacity	4mm (diameter)
Transformer	HTR-24, HTR-30N
Heater	W-19

Angle Blade Type - Blade 22 mm

Model	HT-170
Length	250 mm
Weight	240 grams
Blade Temp. Max	140^deg C
Cutting Capacity	4mm (diameter)
Transformer	HTR-24, HTR-30N
Heater	W-19

Blade 18 mm

Standard Type

Model	HT-180
Length	190 mm
Weight	250 grams
Blade Temp. Max	140^deg C
Cutting Capacity	4mm (diameter)
Transformer	HTR-24, HTR-30N
Heater	W-19

Blade 23 mm

Heavy Duty Type

Model	HT-200
Length	190 mm
Weight	370 grams
Blade Temp. Max	140^deg C
Cutting Capacity	7mm (diameter)
Transformer	HTR-24, HTR-30N
Heater	W-19

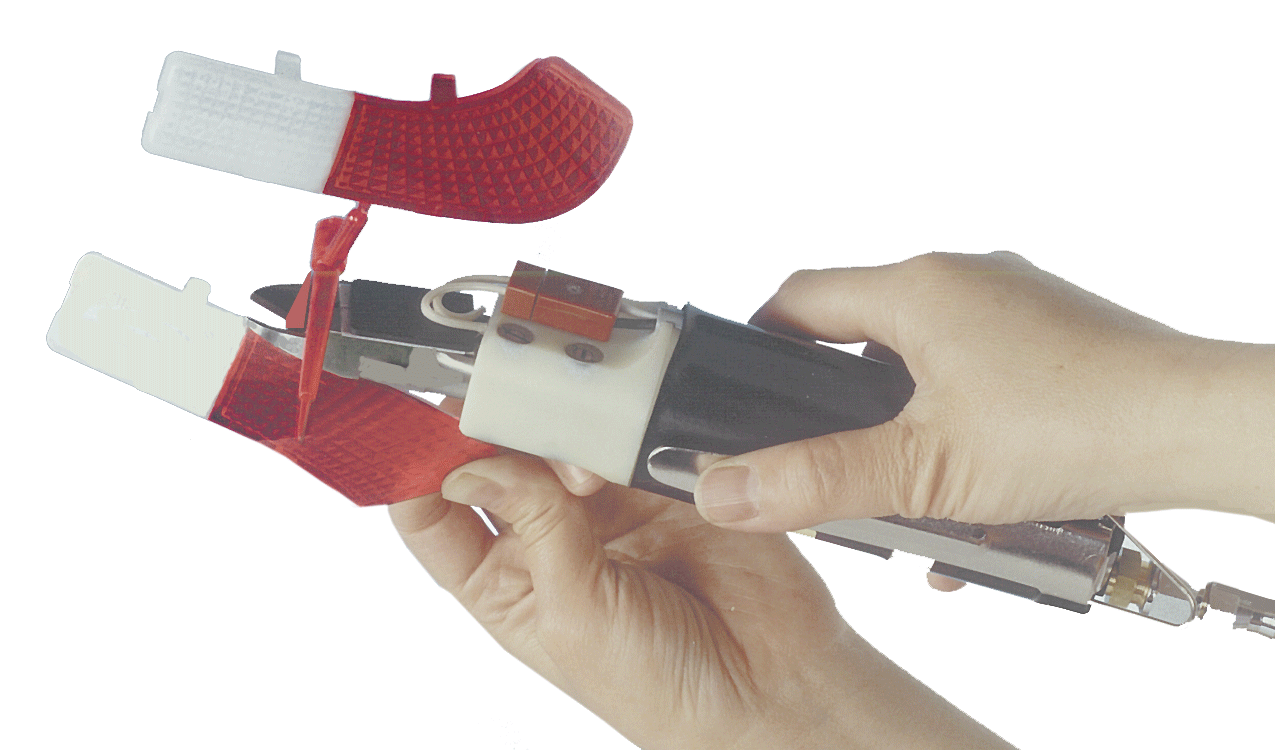

The built-in heater warms up the edges of the blade for easier and crack-free cutting of fragile materials such as Acrylics, Styrene, and glass filled resins.

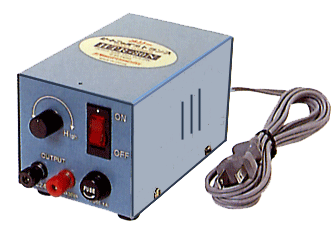

Transformer: 80 x 85 x 130 mm, 1600 grams.
