MSR

MSR type - Tilt & Cut type -

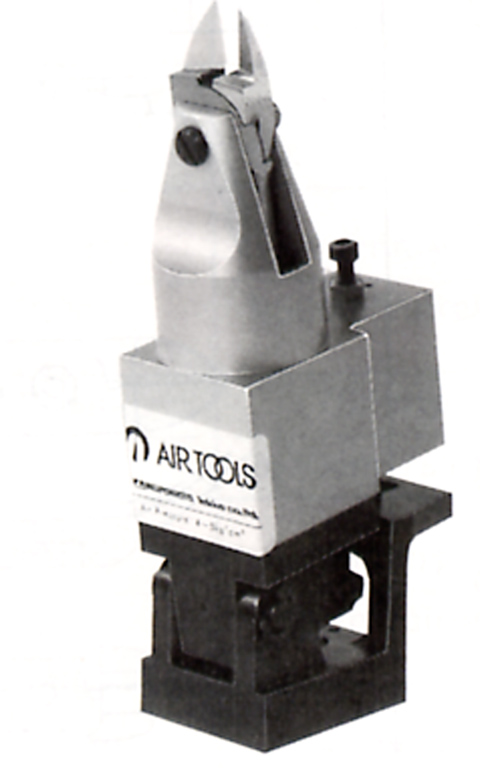

MSR type uses Tilt-Off Mechanism to cut close to work.
The blade for MR type and MP type can be used for MSR type.

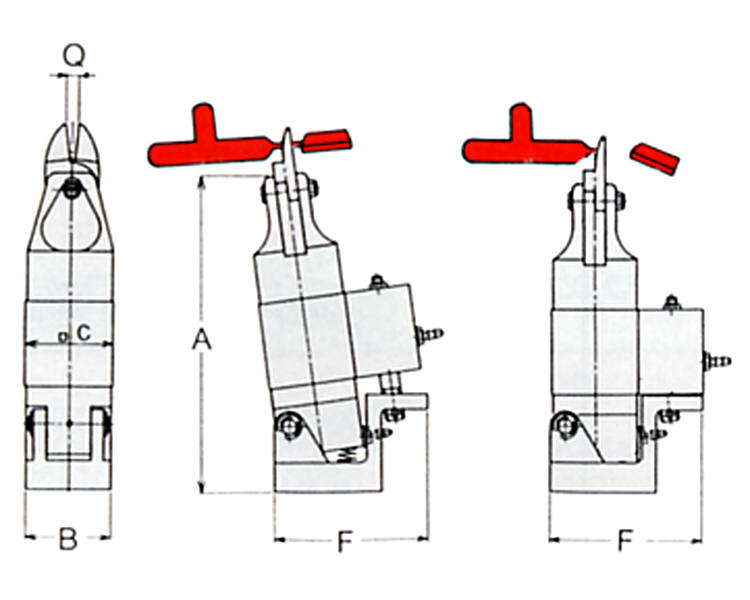

In combination with Timing Unit (TU01), it is tilted to the side of the molded product and cut closer to the molded product.

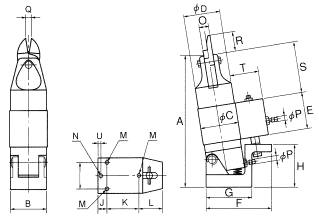

Dimension

Model	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	S	T	U
MSR10	130	35	36	35	35	63	44	40	26	9	31	23	M3	M3	9	4.0	5.5	19	52	27	3
MSR20	145	44	45	44	35	71	51	40	26	10	36	25	M4	M4	12	4.0	9.5	26	67	26.5	3
MSR30	192	55	56	55	40	91	65	47	26	11	38	42	M4	M4	17	4.0	16	50	101	35	4

Specification

Application example
