Power Cutters: Heavy Duty Standard Type
|

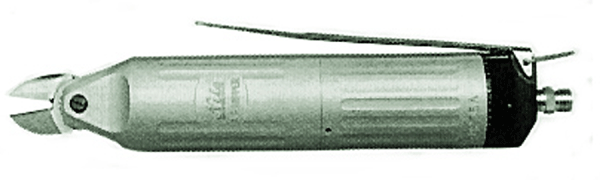

MP35A(Blades sold separately)
| Model No. |
Overall length
(mm) |
Weight
(g) |
Diameter
(mm) |
Air pressure
(N) |
| MP35A |
268 |
830 |
56 |
4410 |

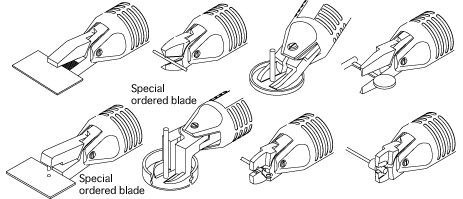

- These cutters have the widest range of usage. Because they are
powerful, they are able to perform many types of work including
cutting, crimping, punching and caulking just by changing the
blades.
|
| Blade No. |
Material |
Cutting capacity
(Diameter=mm) |
S7P
S7PS |
Copper |
4.8 |
P8P
CR8P
EP10P |
Steel |
4.0 |
| Z8P |
Piano wire |
1.2 |
F9P
F9PS
FD9P |
Plastics(Hard)
Plastics(Soft) |
13.0
6.5 |
|
 |
| Non insulated connector |
 |
|
| Insulated connector |
 |
|
| Wire connector insulated |
 |
|
| Reel connector |
 |
|
|
| Blade No. |
Crimping capacity |
| A8P-1.25 |
Non insulated connector1.25 |
| A8P-2.0 |
Non insulated connector2.0 |
| A8P-5.5 |
Non insulated connector5.5 |
| AR8P-1.25 |
Insulated connector 1.25 |
| AR8P-2.0 |
Insulated connector 2.0 |
| AR8P-5.5 |
Insulated connector 5.5 |
| AZ8P-1.25 |
Wire connector insulated 1.25 |
| AZ8P-2.0 |
Wire connector insulated 2.0 |
| Blade No. |
Crimping capacity |
| A8WP-1.25/2.0 |
Non insulated connector 1.25/2.0 |
| A8WP-2.0/5.5 |
Non insulated connector 2.0/5.5 |
| AR8WP-1.25/2.0 |
Insulated connector 1.25/2.0 |
| AR8WP-2.0/5.5 |
Insulated connector 2.0/5.5 |
| AC8WP-1.25 |
Reel connector 1.25 |
| AC8WP-2.0 |
Reel connector 2.0 |
|
|
