[Machine Fitting Type] MS Square Power Cutter - MS10, MR20, MS30, MSP30


  • This power cutter is easily fitted on machines, etc., because its main body is shaped square and because it has a number of holes for screw attachment.

MS20
MS20(Blades sold separately)

Its standard blades can commonly be used with the MR-type power cutters.
Its cutting power is the same as for MR and MP types.
Refer to MR and MP types for specification.
*MSP type is a boosted-up version of the MS-type.
Refer to the page of "Standard Blades" for the shapes of standard blades.
Applicable body
MS10 = MR10
MS20 = MR20
MS30 = MR30A
MSP30 = MP35A

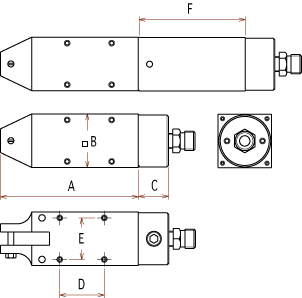

Model No. Size(mm) Weight
(g)
A B C D E F
MS10 93 36 20 30 28 - 260
MS20 109 45 20 40 36 - 430
MS30 150 56 20 60 46 - 810
MSP30 150 56 20 60 46 92 1220
