ME Type Slide & Cut Power Cutter(5
types - ME3, ME5, ME10, ME20, ME30)
- Ideal for cutting runners of molded items made from resin.
|
|
|

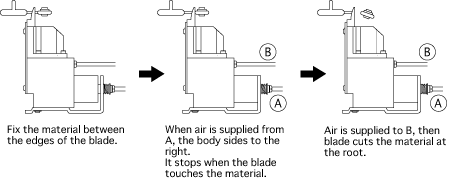

- Operational method
It is possible to control the sliding and
operations of a spare blade by using a timing unit TU01 (sold
separately).
- Affixing the unit
It becomes easier to affix the unit when a set
base (sold separately) is used.

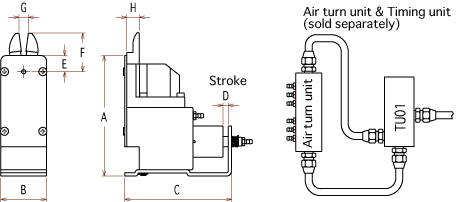

| Model No. |
Size(mm) |
Weight
(g) |
Blade No. |
| A |
B |
C |
D |
E |
F |
G |
H |
| ME3 |
77.2 |
20 |
71.2 |
3 |
8 |
24 |
4 |
7 |
170 |
F10E |
| ME5 |
79.2 |
29 |
76.2 |
3 |
9 |
24 |
6 |
7 |
290 |
F1E |
| ME10 |
102.2 |
35 |
88.2 |
3 |
10 |
27 |
7 |
9 |
540 |
F3E |
| ME20 |
116.2 |
44 |
103.2 |
5 |
13 |
35 |
9 |
12 |
810 |
F5E |
| ME30 |
149.2 |
56 |
127.2 |
5 |
15 |
66 |
16 |
17 |
1490 |
F9E |
|
