MSK type - Square type -
MSK type is suitable for the machine-mounting.
End part of cutter is round and thin therefore it is easy to use it in
the narrow space.
Work with three-way solenoid valve.

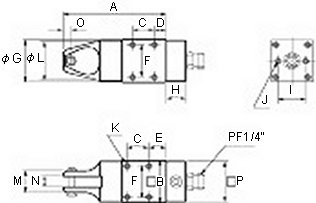

Dimension
Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P |
MSK-10 | 87 | 36 | 18 | 10 | 15 | 28 | 28 | 35 | 24 | M4 | M4 | 33 | 18 | 9 | 7 | 35 |
MSK-20 | 102 | 45 | 20 | 15 | 20 | 36 | 36 | 44 | 30 | M5 | M4 | 42 | 24 | 12 | 9 | 44 |
MSK-30 | 141 | 56 | 27 | 18 | 26 | 46 | 46 | 55 | 40 | M6 | M5 | 52 | 34 | 17 | 15 | 55 |
Specification
Model | Cutting Capacity | Body length (mm) |
Weight (gram) |
Diameter φ(mm) |
Air Cons. (cm3 / stroke) |
Pressure (kgf) |
Working Air Pre. (kgf / cm2) |
Applicable Blade |
Cutting Effect. Length (mm) | Blade Thickness (mm) | Blade Opening (Max. mm)±0.5 |
|
MSK-10 | Soft plastic Hard plastic |
φ4.0 φ2.6 |
104 | 190 | 35 | 116 | 60 | 4-5 | F3 FD3 F3S FEP4 |
13 11 13 9 |
6 9 4.5 9 |
5.5 5.5 5.5 5.0 |
MSK-20 | Soft plastic Hard plastic |
φ7.0 φ5.0 |
119 | 340 | 44 | 230 | 140 | 5-6 | F5 FD5 F5S FEP6 |
18 14 16 12 |
8 12 6 12 |
9.5 9.5 9.5 8.5 |
MSK-30 | Soft plastic Hard plastic |
φ10.0 φ6.5 |
158 | 590 | 55 | 584 | 280 | 5-6 | F9P FD9P F9PS FEP10P |
38 27 37 17 |
9 17 11 17 |
17.0 15.0 16.0 8.0 |
