ML type - Slide & Cut type -
This type is moved in parallel with the mounting plate. Sliding part is
very robust and has no play horizontally.
The blade for MR type and MP type
can be used.
When the cutting capacity is not enough in case of using MER
type or ME type, please use ML type.
ML type is suitable for gate-cutting teh
large molded product.
In combination with Timing Unit (TU01), it can be moved
and cut closer to the molded product.
Stroke is 10 mm.

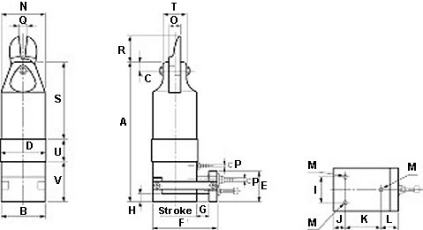

Dimension
Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V |
ML-10 | 128 | 35 | 7 | 36 | 31 | 63 | 10 | 8 | 26 | 11 | 31 | 17 | M3 | 35 | 9 | 4 | 5.5 | 19 | 71 | 18 | 16 | 41 |
ML-20 | 143 | 44 | 9 | 45 | 31 | 64 | 10 | 8 | 26 | 11 | 36 | 21 | M4 | 44 | 12 | 4 | 9.5 | 26 | 79 | 24 | 18 | 41 |
ML-30 | 184 | 55 | 15 | 56 | 33 | 76 | 10 | 8 | 26 | 14 | 38 | 24 | M4 | 55 | 17 | 4 | 16 | 50 | 123 | 34 | 23 | 43 |
Specification
Model | Cutting Capacity | Body
length (mm) |
Weight (gram) |
Diameter (mm) |
Air
Cons. (cm3 / stroke) |
Working
Air Pre. (kgf / cm2) |
Stroke (mm) |
Applicable Blade |
Cutting Effect. Length (mm) | Blade Thickness (mm) | Blade
Opening (Max. mm)}0.5 | |
ML-10 | Soft plastic Hard plastic |
5.0 4.0 |
128 | 340 | 35 | 136 | 4-5 | 10 | F3 FD3 F3S FEP4 |
13 11 13 9 |
6 9 4.5 9 |
5.5 5.5 5.5 5.0 |
ML-20 | Soft plastic Hard plastic |
7.0 5.0 |
143 | 500 | 44 | 250 | 5-6 | 10 | F5 FD5 F5S FEP6 |
18 14 16 12 |
8 12 6 12 |
9.5 9.5 9.5 8.5 |
ML-30 | Soft plastic Hard plastic |
10.0 6.5 |
184 | 870 | 55 | 634 | 5-6 | 10 | F9P FD9P F9PS FEP10P |
38 27 37 17 |
9 17 11 17 |
17.0 15.0 16.0 8.0 |
* Soft plastic : PP, PE.
* Hard plastic : ABS,
Polycarbonates, Acrylic resin, POM, PS.
