CF type - Turtle-Neck Blade  type -

Use this type as the end of arm tooling for robot.
Our unique " Turtle-Neck mechanism will extend out 30 mm, cut and retract.

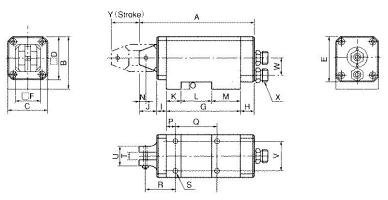

             Dimension

Model A B C D E F G H I J K L M N O P Q R S T U V W X Y
CF-5 124 54 44 44 47 28 80 15 10 19 16 33 31 7 8 10 45 32 M6
D12
7 20 30 18 PF
1/4
30
CF-10 146 64 54 54 54 34 100 15 10 21 26 40 34 7 8 16 60 40 M6
D12
9 20 30 19 30
CF-20 165 70 62 62 62 42 117 15 10 23 26 55 36 9 8 16 75 40 M6
D10
12 26 34 21 30

                                                                                                                               D : Depth

              Specification

Model Cutting Capacity Body length
(mm)
Weight
(gram)
Diameter
φ(mm)
Air Cons.
(cm3 / stroke)
Working Air Pre.
(kgf / cm2)
Stroke
(mm)
Applicable
Blade
Cutting Effect. Length (mm) Blade Thickness (mm) Blade Opening
(Max. mm)±0.5
CF-5 Soft plastic φ2.0 124 570 44 490 4-5 30 F1
F1S
FD1
FEP2
12
13
10
7
5
3.5
7
7
4.0
3.5
3.5
3.0
CF-10 Soft plastic
Hard
plastic
φ4.0
φ2.6
146 940 54 830 4-5 30 F3
FD3
F3S
FEP4
13
11
13
9
6
9
4.5
9
5.5
5.5
5.5
5.0
CF-20 Soft plastic
Hard
plastic
φ7.0
φ
5.0
165 1300 62 1160 5-6 30 F5
FD5
F5S
FEP6
18
14
16
12
8
12
6
12
9.5
9.5
9.5
8.5

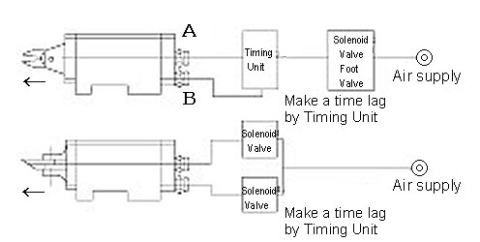

Application example
