MGseries

MG type - Slide & Cut type -It is not necessary to use Timing Unit  (TU01).
Compact size and light in weight.

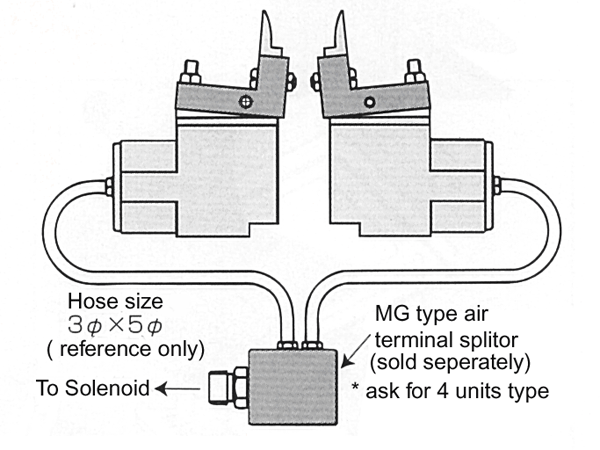

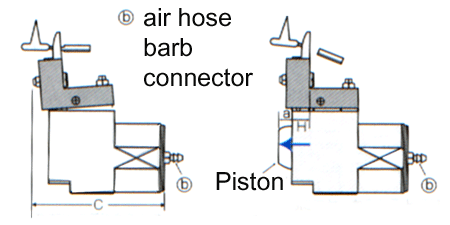

             Dimension

Model A B C D E F G H I J L
MG-3 50 20 60 16 14 25 15 7.0 4.0 M3 φ4
MG-10 73 35 73 20 27 29 17.5 9.0 7.0 M3 φ4
MG-20 95 46 89 21 36 39 19 12 8.0 M4 φ4

              Specification

Model Cutting Capacity Body length
(mm)
Weight
(gram)
Air Cons.
(cm3 / stroke)
Working Air Pre.
(kgf / cm2)
Stroke
(mm)
Applicable
Blade
Cutting Effect. Length (mm) Blade Thickness (mm) Blade Opening
(Max. mm)±0.5
MG-3 Soft plastic

φ2.0 50 80 22 4-5 4 FG10
FG10K
14
14
3.5
3.5
4.0
4.0
MG-10 Soft plastic

φ4.0 73 230 60 4-5 5 FG3
FG3K
14
14
4.5
4.5
7.4
7.4
MG-20 Soft
plastic
φ6.0 95 420 90 5-6 4 FG5
FG5K
18
18
6
6
8.4
8.4



* Soft plastic   : PP, PE.
* Hard plastic  : ABS, Polycarbonates, Acrylic resin, POM, PS.
